Premium Graphite Sheets for Industrial Applications Manufacturers in China

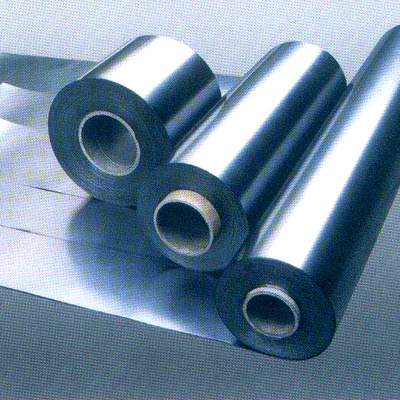

Graphite Sheet: The Ultimate Thermal Management Solution by Kaxite In today's high-performance electronics and industrial applications, managing heat is not just a consideration; it's a critical requirement for reliability, efficiency, and longevity. Traditional solutions often fall short, leading to thermal throttling, component failure, and suboptimal performance. This is where advanced thermal interface materials (TIMs) step in, and among them, Graphite Sheet stands out as a superior choice. Kaxite, a leader in innovative material science, has engineered high-performance graphite sheets that set a new standard for thermal conductivity and design flexibility. **What is a Graphite Sheet?** A graphite sheet, or graphite thermal pad, is a thin, flexible material made from compressed exfoliated graphite. This unique structure creates a planar network of highly conductive graphite crystals. Unlike traditional greases or gap fillers, it conducts heat exceptionally well in the X and Y directions (in-plane), effectively spreading heat away from hot spots to larger, cooler areas or heatsink structures. Kaxite's proprietary manufacturing process ensures consistency, purity, and optimal performance in every sheet we produce. **Key Advantages of Kaxite Graphite Sheets** * **Exceptional Thermal Conductivity:** Offering in-plane thermal conductivity ranging from 300 to over 1500 W/mK, our sheets rapidly dissipate heat, far surpassing traditional materials like aluminum or copper foil in efficiency for spreading applications. * **Lightweight and Ultra-Thin:** With thickness options as low as 0.01mm, our sheets add negligible weight and volume, which is crucial for modern, compact devices like smartphones, tablets, and ultra-thin laptops. * **High Flexibility and Conformability:** Kaxite graphite sheets are highly flexible, allowing them to conform to uneven surfaces, fill microscopic gaps, and be easily routed around components, simplifying assembly and improving contact. * **Electrically Insulating or Conducting Options:** We provide both standard electrically conductive sheets and versions with insulating layers (like PI film) for applications requiring electrical isolation, offering design versatility. * **Long-Term Reliability:** Unlike thermal greases that can pump-out, dry out, or migrate, graphite is a solid, stable material. It does not degrade over time, ensuring consistent thermal performance throughout the product's lifespan without maintenance. * **Ease of Application:** Supplied in rolls, sheets, or die-cut parts, they feature adhesive backing for simple, clean, and secure installation, reducing assembly time and cost. **Comprehensive Product Parameters and Specifications** To help you select the perfect material for your application, Kaxite offers a range of graphite sheets with specific properties. Below is a detailed breakdown of our standard product series. **Kaxite Standard Graphite Sheet Series (GS Series)** | Series Code | Thickness (mm) | Thermal Conductivity (In-Plane, W/mK) | Thermal Conductivity (Through-Plane, W/mK) | Density (g/cm³) | Tensile Strength (MPa) | Electrical Resistivity (Ω·cm) | Typical Applications | | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | | **GS-300** | 0.025 - 0.5 | 300 - 500 | 5 - 10 | 1.0 - 1.3 | ≥ 4.0 | 0.001 - 0.005 | LED lighting, consumer electronics, general heat spreading | | **GS-800** | 0.04 - 1.0 | 800 - 1000 | 8 - 15 | 1.3 - 1.6 | ≥ 5.0 | 0.0008 - 0.003 | Smartphones, tablets, SSD cooling, automotive displays | | **GS-1500** | 0.06 - 1.5 | 1200 - 1500+ | 10 - 20 | 1.6 - 1.9 | ≥ 6.5 | 0.0005 - 0.002 | High-power CPUs/GPUs, telecommunications equipment, power converters | | **GS-Insul** | 0.1 - 2.0 | 400 - 800 (in-plane) | 2 - 5 | 1.2 - 1.5 | ≥ 4.5 | > 10^9 | Applications requiring electrical isolation (e.g., battery packs, motor drives) | **Customization and Additional Features** Beyond our standard series, Kaxite provides extensive customization to meet exact design requirements: * **Die-Cutting:** Precision die-cutting into any complex shape or array for direct application. * **Backing Materials:** Available with single or double-sided adhesive (acrylic or silicone-based), non-adhesive, or with protective release liners. * **Reinforcement:** Lamination with metal foils (copper, aluminum) or polyimide films for enhanced handling strength, EMI shielding, or specific thermal paths. * **Thickness & Size:** Tailored thickness and sheet/roll dimensions to suit high-volume production lines. **Kaxite Graphite Sheet FAQ (Frequently Asked Questions)** **Q: How does a graphite sheet work compared to thermal paste?** **A:** Thermal paste is a viscous compound that fills microscopic air gaps between two surfaces to improve thermal transfer *through* its thickness (Z-axis). A graphite sheet primarily conducts heat *across* its plane (X-Y axis), acting as a heat spreader. It pulls heat from a concentrated source (like a CPU) and spreads it over a larger area, where it can be more efficiently dissipated by a heatsink or enclosure. While paste is best for filling interface gaps, a graphite sheet is ideal for managing and redistributing heat across a device. **Q: Are Kaxite graphite sheets electrically conductive?** **A:** Our standard graphite sheets (GS-300, GS-800, GS-1500) are electrically conductive due to the nature of graphite. This is important to consider in circuit design to prevent shorting. For applications where electrical isolation is required, we offer our **GS-Insul** series, which features an integrated insulating layer (typically polyimide) that blocks electrical current while maintaining excellent in-plane thermal conductivity. **Q: Can I use a graphite sheet to replace a heatsink?** **A:** Not typically. They serve complementary functions. A graphite sheet is a heat *spreader*, while a heatsink is a heat *dissipator*. The sheet effectively moves heat away from a hot component to a larger area. That larger area is often a metal heatsink or the device casing, which then uses fins and airflow to release the heat into the environment. Used together, they form a highly efficient thermal management system. **Q: How do I install and handle a Kaxite graphite sheet?** **A:** Installation is straightforward. For sheets with adhesive backing, simply peel off the release liner and apply the sheet to the clean, dry target surface. Apply gentle, even pressure. Handle the sheets with clean gloves or tools to prevent contamination from oils and dirt, which can reduce thermal performance. The sheets are flexible but should not be creased or folded sharply, as this can damage the graphite structure. They can be gently curved or bent to fit. **Q: What is the maximum operating temperature for your sheets?** **A:** Kaxite graphite sheets are highly stable and can operate continuously in temperatures ranging from -40°C to over 150°C, with some grades capable of withstanding short-term peaks up to 400°C in inert atmospheres. Their performance does not degrade within the standard operating range of most electronic devices. **Q: How do I select the right thickness and grade for my application?** **A:** Selection depends on your thermal budget, space constraints, and heat source profile. * **Thickness:** Thinner sheets (0.025-0.1mm) are for extremely space-constrained applications with moderate heat. Thicker sheets (0.5-1.5mm) offer higher in-plane conductivity and can handle more significant heat loads. * **Grade:** For general heat spreading (e.g., in a laptop display), GS-300 or GS-800 may suffice. For high-flux components (CPU/GPU in a gaming phone or server), GS-1500 is recommended. Always consult with Kaxite's engineering support team for a detailed analysis based on your specific requirements. **Q: Are graphite sheets durable and reliable for long-term use?** **A:** Yes, absolutely. This is a key advantage. Graphite is a chemically inert and mechanically stable carbon form. Kaxite graphite sheets will not dry out, harden, pump-out, or undergo phase changes like some phase-change materials or greases. They provide consistent thermal interface performance for the entire operational life of the product without any maintenance or risk of failure due to material aging. **Q: Does Kaxite provide testing data and material samples?** **A:** Yes. Kaxite is committed to transparency and engineering support. We provide comprehensive material data sheets (MDS) with detailed thermal, mechanical, and electrical properties for all our products. We also offer prototype and evaluation samples so your engineering team can validate performance in real-world testing scenarios. Contact our sales team to request samples and datasheets.
