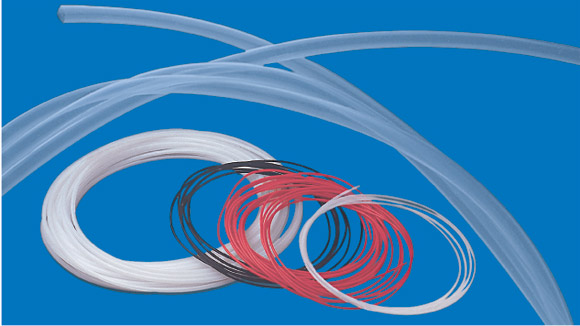

FEP Tubing

Discover Kaxite's premium FEP Tubing, the ultimate solution for high-purity fluid transfer and chemical resistance. Crafted from top-grade FEP material, it ensures superior durability, transparency, and flexibility, making it ideal for labs, medical devices, and industrial applications. Experience reliable performance that simplifies processes and enhances safety. Stand out with Kaxite's trusted quality—elevate your projects today!

Send Inquiry

Product Description

[ Features ]

FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.

[ Specifications ]

Unit mm

outside diameter	Tolerance	wall thickness	Tolerance	outside diameter	Tolerance	wall thickness	Tolerance
1	0.08	0.2	0.05	16	0.20	1.0	0.15
2	0.08	0.2	0.05	18	0.20	1.0	0.15
3	0.10	0.4	0.06	20	0.40	1.0	0.15
4	0.10	0.4	0.06	25	0.40	1.5	0.20
5	0.10	0.5	0.10	32	0.50	1.5	0.20
6	0.10	0.5	0.10	36	0.50	2.0	0.20
8	0.20	0.5	0.10	40	0.50	2.0	0.20
10	0.20	1.0	0.15	50	0.50	2.0	0.20
12	0.20	1.0	0.15	65	0.80	3.0	0.30
14	0.20	1.0	0.15	80	1.00	3.0	0.40

[ Main properties ]

Properties	Unit	Result
Properties	Unit	electricity gas	be current
Tensile strength	Mpa	14	14
Ultimate Elongation	%	175	175
Dialectric Strength 0.2mm wall 0.4mm thickness 0.5mm	MV/m	30 25 24	-- -- --

[ Applications ]

Can be long term used under the temperature from -80

- 200

.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.

Hot Tags: FEP Tubing Supplier, High Temperature Resistant Tubing, Custom FEP Tubing
